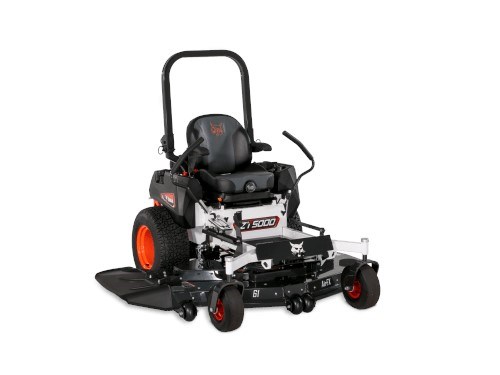

ZT5000 - 61” Deck Overview

With its incredible quality of cut courtesy the AirFX™ deck, commercial-grade transmission, and large drive tires, the ZT5000 is built for professional landscapers who demand the most from their machines, day after day.

  • 23.5-hp Kawasaki® FX series engine provides commercial-quality performance and outstanding durability.
  • The bullnose AirFX™ cutting deck provides a phenomenal quality of cut and even clipping dispersal.
  • Commercial-grade Hydro-Gear® ZT-3800 transaxles deliver the performance and torque required for all-day mowing.
  • High-back suspension seat and almond shaped handles provide operator comfort.
  •   Large 7.8 gallon fuel capacity reduces the time required to stop and refuel.



ZT5000 - 61” Deck Specs & Compare
ZT5000 Key Specifications
Mower DeckAirFX Dual 10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Width61 in
Cutting Height1.5-4.8 in / 38-121 mm
Engine ModelKawasaki FX730V Gas Engine
Displacement726 cm³
Transmission typeHydro Gear ZT-3800 Hydrostatic
Pump Displacement11 cm³
Deck
Blade Tip Speed18,809 ft/min
Discharge ChuteFlexible Molded Polymer
Engine
Emissions Tier (EPA)Tier 4
Fuel Capacity7.8 gal
Horsepower23.5 hp
Performance
Weight1043 lb
Transmission
Oil Capacity4 qt_liq_us
Electrical
Clutch125 ft·lbf
Frame
Front/RearWelded 7-gauge Steel; 1.5- x 2.5-inch Steel Tubing
Length81.7 in
Wheels
Drive Wheel24 x 10.5-12
Front Caster Wheel Size13 x 6.5-6
Caster Arm AttachmentWelded to Frame
ZT5000 - 61” Deck Features & Benefits

High-Performing and Reliable Kawasaki FX Series Engine

The reliable 23.5-hp Kawasaki® FX series engine provides commercial-quality performance with canister air filters, smooth power output and outstanding durability. Kawasaki FX series engines are among the most respected engine designs in the industry.

AirFX Deck

The bullnose AirFX™ deck empowers you to deliver a cut above the rest. It features a deep-deck design that increases vacuum, lifting the grass to the blade for a superior quality of cut and professional finish. Its tough construction, including the spindle assemblies and air-gap baffle technology, stand up to the toughest commercial-grade workloads. The AirFX deck is available in two sizes, a 52-inch deck or 61-inch deck.

Commercial-Grade Transmission

Designed for demanding jobs, the Hydro-Gear® ZT-3800 transaxles deliver all the performance and torque you need for all-day mowing at a productive speed.

Productive Travel Speed

Ground speeds of up to 11mph, along with 24-inch zero-turn drive tires, help you cover big and small lots in less time.

Dual Fuel Tanks

Dual fuel tanks provide 7.8 gallons of total capacity for maximum productivity and less stopping for fill-ups.

24-Inch Drive Tires

The large wheels give you great control and a smooth ride, plus ample ground clearance to minimize ground disturbance and enable easy maneuverability on tough terrain.

High-Performance FX Series Engines

The Kawasaki® FX Series engine provides commercial-quality performance with canister air filters, smooth power output and outstanding durability.

AirFX Deck: Heavy-Gauge Steel Construction

Built from heavy-gauge steel with cast-iron spindles, dual 10-gauge layers, and 3- and 7-gauge reinforcements to mow down anything that comes your way.

Pneumatic Caster Wheels

The tough front caster wheels keep your mower rolling smoothly and uniformly over the ground for consistent, efficient results. Optional, no-flat caster wheels are also available.

Solid, Tubular Frame

A heavy-duty structural tubed frame design provides maximum durability that's engineered to withstand challenging mowing conditions. This machine is constructed with a lightweight, yet ruggedly durable, 1.5 x 2.5-inch steel-tubed frame.

Professional-Level Comfort and Usability

When you mow for a living, you can’t sacrifice comfort. With Bobcat mowers, you won’t. Your Bobcat mower surrounds you in comfort with a deluxe suspension seat, and it puts all the mower’s capability within easy reach.

High-Back Deluxe Suspension Seat

Your Bobcat mower gives you all-day comfort in the operator station. Its extra high back seat provides unbeatable support and comfort while you work. It features weight adjustment with fore and aft mechanical adjustment.

Almond-Shaped Handles

The ergonomic almond-shaped handles provide smooth, responsive control with a natural, comfortable shape that feels great in your hands and helps reduce fatigue.

Operator Controls

Ergonomic design and placement of controls, gauges and creature comforts ensure that the operation of your mower is easy, intuitive and enjoyable.

Easy to Own. Efficient to Maintain.

You depend on your mowers to perform at their best, day in and day out. It’s your business, your livelihood – and you can't afford unnecessary downtime. Built for easy serviceability, Bobcat zero-turn mowers have intuitive access points to internal components, making  maintenance quick and easy.

Front and Rear Tie Downs

Large and durable tie-down points allow for simple trailering and transportation.

AirFX Deck: Tool-Free Cleaning Access

Convenient belt covers can be easily removed without tools, or use blow-out ports to save even more time.

Tool-Free Oil Drain

Keep your oil changes simple with fast, easy tool-free drainage.

Accessories

With a variety of options geared toward mowing professionals, you can customize your machine for the way you work.

AirFX Deck: Adjustable Front Lip

The adjustable cutting system optimizes your cutting capability for all kinds of mowing conditions and grass types.

Two Deck Options

The AirFX Deck is available in two sizes, a 52-inch deck or 61-inch deck.
