E10

E10

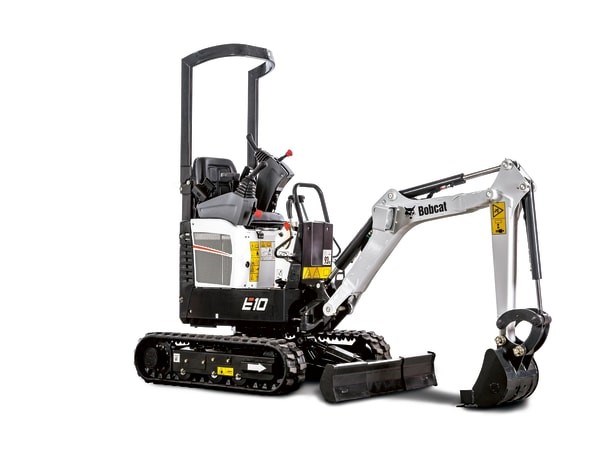

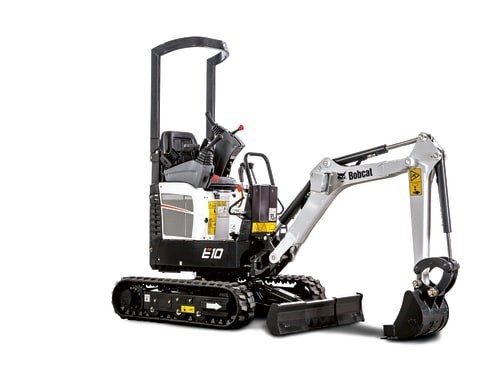

The zero tail-swing E10 can access hard-to-reach jobsites and conquer demanding work where hand labor is often your only other option. Take on demanding tasks in small spaces, leave behind minimal ground disturbance and easily transport this mini excavator to the next jobsite.

  • Retractable blade and undercarriage
  • Zero tail swing
  • Fold-down, tip-over protective structure (TOPS)
  • Ergonomic controls
  • Get a Quote Payment Calculator

    • Get information on the E10

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

  • View Product Brochure
E10 Overview
  • The smallest excavator in the Bobcat lineup, the ultra-compact E10 delivers big performance with minimal ground disturbance.
  • Retract the undercarriage and blade with the push of a button to pass through standard doorways, tight property lines and other access points. The undercarriage retracts to just 28 inches. Then return the undercarriage to its 43-inch stance for the job at hand.
  • The rear of the house stays within the width of the tracks through full rotation, giving you the maneuverability you need to accomplish more on small jobsites.
E10 Specs & Compare
Download PDF
E10 Key Specifications
Operating Weight2,593 lb
Bucket Digging Force1,865 lbf
Maximum Reach at Ground Level122.4 in
Width28 in
Tail Swing TypeZero
Engine
Emissions Tier (EPA)Tier 4
Engine FuelDiesel
Maximum Governed RPM2,370 rpm
Turbocharged Engineno
Optional Turbocharged EngineN/A
Performance
Weight Class1 t
Travel Speed - High1.7 mph
Travel Speed - Low1.3 mph
Arm Digging Force1,248 lbf
Rated Lift Capacity965 lb
Lift Radius79 in
Boom Swing - Left67°
Boom Swing - Right64°
Maximum Dig Depth72 in
Max Dump Height72 in
Capacities
Fuel Tank4.2 gal
Hydraulic System
Auxiliary Std Flow5.3 gal/min
Auxiliary Pressure2,756 psi
Dimension
Length110 in
Overall Length in Travel Position110 in
Height87 in
Height with Operator Cab87 in
Features
Air ConditioningNot Applicable
Cab EnclosureNot Applicable
Cab HeaterNot Applicable
Heater Air ConditioningNot Applicable
RadioNot Applicable
Engine ShutdownNot Applicable
Auxiliary HydraulicsStandard
Secondary Auxiliary HydraulicsNot Applicable
Quick Tach SystemNot Applicable
Rubber TrackStandard
Selectable Auxiliary Hydraulic FlowNot Applicable
Angle BladeNot Applicable
E10 Features & Benefits

Selectable Control Pattern

Easily change between “excavator” and “backhoe” patterns. No keys are required.

2-Speed Travel

Maneuver faster with the Bobcat 2-Speed option. The quicker you can move on your jobsite, the faster you can complete your work. Select low range for pushing and dozing and high range for increased jobsite mobility.

Fold-Down Tip Over Protective Structure (TOPS)

Pass underneath branches, low openings and through doorways to get to your work area.

Retractable Blade & Undercarriage

The hydraulically activated retractable undercarriage gives you the flexibility to access tight gates and doorways while maintaining its power as an excavating machine. The retractable blade also gives the operator greater ability to move in small areas.

Blade Float

Simplify grading and leveling. Blade float exerts a minimal, consistent down-force on the blade, with minimal operator input.

Ergonomic Controls

Operator-friendly, ergonomic controls keep you productive all day long. Control attachments with precision, flexibility and low fatigue. Grade, level and backfill with less operator input. Head to the next jobsite using the one-hand travel control. Adjust the arm rests for added comfort.

In-Cab Pattern Selector

A pattern selector allows you to change from an “excavator” to a “backhoe” control pattern. No keys or special tools are required.

Adjustable Control Consoles

The operator has the ability to adjust the LH and RH control consoles outward for comfort or inward for access through narrow openings.

Hydraulic Joystick Control

The hydraulic joystick control on the Bobcat excavator delivers smooth, fluid operation and increased efficiency.

Soft Grip Joysticks

Bobcat excavators feature soft-grip pilot control joysticks that provide effortless control of the workgroup.

In-Track Swing Frame

The exclusive In-Track Swing Frame on Bobcat® compact excavators gets you closer to your work.

Protected Components

No other manufacturer provides so many job-proven features to give you more uptime in the field. Bobcat® compact excavators have more standard features that help you stay on the job longer.

Simple Machine Tie-Down

Get on and off the jobsite faster. Secure your load quickly, without searching for hard-to-reach tie-downs.

Top-Mounted Boom Cylinder

Vital machine components on Bobcat® E10 and E20 compact excavators are protected from damage by design. The hydraulic cylinder is mounted on top of the boom to prevent contact with the trench, bucket or nearby obstacles.

Multiple Tailswing Configurations

Choose an excavator model with the tail swing configuration that best matches the needs of your jobsite. Models provide different levels of maneuverability.

Centralized Grease Bank

A centralized grease bank makes fast, simple work of lubricating the slew bearing and slew pinion. With the large opening, it’s simple and easy to reach the well-protected grease cylinder fitting and complete track tensioning.
