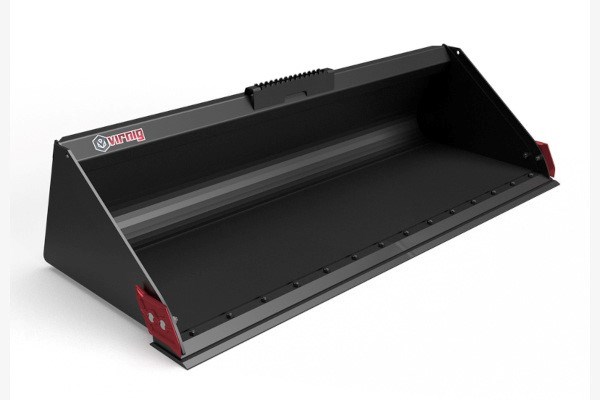

Designed tougher and heavier than the V50 Dirt Bucket.

  • Get a Quote Payment Calculator

    • Get information on the HDHV90GB

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

HDHV90GB Specs & Compare
Download PDF
MODELSHDHV90GB
Width: Overall / Inside (Inches)91.5 / 89.3
Overall Height (Inches)20.5
Depth: Overall / Inside (Inches)37.1 / 32.5
Capacity: Struck / Heaped (Cubic Feet)17.8 / 21.4
Bucket Back Angle (Degrees)66
Shell Thickness (Inches)0.25
Side Plate Thickness (Inches)0.25
Structural Wear Bars Under Bucket (1/2″ x 4″)5
Approximate Weight (Pounds)840
Recommended Loader CapacityGreater than 2400 pounds
HDHV90GB Features & Benefits
  • CUTTING EDGE VISIBLE FROM INSIDE CAB
  • GRADING BEND FOR OPTIMAL REVERSE GRADING & CURVED INSIDE FOR EASIER MATERIAL CLEANOUT
  • 1″ x 6″ WELD-ON EDGE
  • ADDITIONAL GUSSETING ON BACK OF BUCKET
  • 1/2″ x 4″ WEAR BARS PROTECT THE BUCKET BOTTOM
  • 1/4” THICK SHELL & SIDE PLATES
