MI 70 D US Specs & Compare
Download PDF
Technical characteristics
Manufacturer Manitou
Model Name MI 70 D US
Power source Diesel
Operator type Seated
Max. capacity 15432 lb
Load center of gravity 24 in
Load distance, centre of drive axle to fork 24 in
Wheelbase 91 in
Weight
Service weight 22289 lb
Weight on front axle (laden) / rear axle (laden) 33709 lb / 4012 lb
Weight on front axle (Unladen) / rear axle (Unladen) 9083 lb / 13206 lb
Wheels
Tires type Pneumatic
Dimensions of front wheels 8.25-15-14PR
Dimensions of rear wheels 8.25-15-14PR
Number of front wheels / rear wheels 4 / 2
Number of drive wheels 2
Front wheel gauge 59 in
Rear wheel gauge 67 in
Dimensions
Height of overhead guard (cabin) 96 in
Seat height/stand height 53 in
Height of towing bar (coupling height) 28 in
Overall length 189 in
Length to face of forks 141 in
Overall width 78 in
Overall width - Twinned wheels 78 in
Forks section / width / length 3 in x 6 in x 48 in
Fork carriage ISO 2328 (class/form) A/B 4A
Fork carriage width 67 in
Ground clearance below mast 7 in
Ground clearance at centre of wheelbase 11 in
Aisle Width for pallets 1000 x 1200 crossways 207 in
Aisle width for 800 x 1200 pallet lengthways 212 in
Turning radius 131 in
Internal turning radius (over tyres) 48 in
Performances
Travel speed (laden / unladen) 11 mph-15 mph
Lifting speed (laden / unladen) 1 ft/s-1 ft/s
Lowering speed (laden / unladen) 2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen) 6280 daN / 3600 daN
Gradeability (laden) 34 %
Service brake Hydraulic
Engine
Engine brand / model Deutz / TCD 3.6L 4
I.C. Engine power rating 55.40 kW
Rated speed 2200 rpm
Number of cylinders / Capacity of cylinders 4 - 220 in³
Miscellaneous
Working hydraulic pressure for attachments 2828 PSI
Oil flow rate for attachments 15 US gpm
Measured/guaranteed mean noise level at the ear of the operator < 84 dB
Sound level at the driver's ear according to DIN 12 053 84 dB
MI 70 D US Features & Benefits

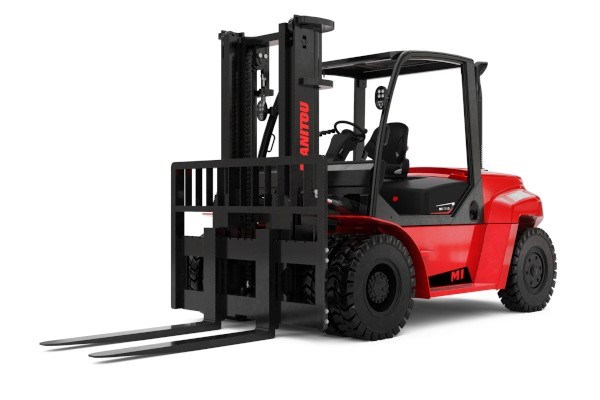

With a maximum capacity of 7 tonnes and a lift height of 7 m, the Manitou MI 70 D is a heat engine-powered forklift capable of providing solutions to a wide range of applications faced by handling professionals. Suited to handling loads on solid travelling surfaces and with the suspended driver's seat, power steering and an ergonomic work space capable of adapting to all of your operators' needs, it'll quickly become one of your most popular machines.Mechanics can save time with easy access to the key maintenance points. With its simplified design and robust components, the MI 70 D is one industrial forklift that's built to last.
